Graphical displays with Python and Pygame
Refreshing Sections of the Screen
Refreshing the entire screen takes a long time, especially on low-power platforms, but that's not to say you should never use flip(). If I set up a full-screen background or subdivide my entire window with lines, I can call flip() at the end of my setup routine. After that, I get the best performance by refreshing only the areas that have changed.
The Python and Pygame class in Listing 4 draws a checkers board. Each member function keeps track of screen areas that it updated. To use the class, add (x, y) tuples to the lists blackCheckers, redCheckers, and clearList using append. The board origin is (0, 0) in the upper left corner (Figure 10).

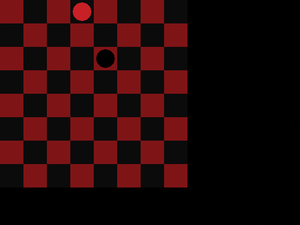

Figure 10: The checkerboard and a few checkers. Append more coordinates to the black and red checkers lists to draw additional checkers.
Listing 4
checkers/checkers.py
01 import pygame 02 03 class checkers: 04 def __init__ ( self, screen ): 05 self.board = list() 06 self.blackCheckers = list() 07 self.redCheckers = list() 08 self.clearList = list() 09 self.refreshList = list() 10 11 blackRow = list() 12 redRow = list() 13 14 self.screen = screen 15 16 for i in range ( 4 ): 17 blackRow.append ( ( 128, 0, 0 ) ) 18 blackRow.append ( ( 10, 10, 10 ) ) 19 20 redRow.append ( ( 10, 10, 10 ) ) 21 redRow.append ( ( 128, 0, 0 ) ) 22 23 for i in range ( 4 ): 24 self.board.append ( blackRow ) 25 self.board.append ( redRow ) 26 27 def drawBoard ( self ): 28 x = 0 29 y = 0 30 31 for row in self.board: 32 for square in row: 33 pygame.draw.rect ( self.screen, square, ( x * 50, y * 50, 50, 50 ), 0 ) 34 x += 1 35 x = 0 36 y += 1 37 38 pygame.display.flip() 39 40 def drawCheckers ( self ): 41 for address in self.blackCheckers: 42 refreshRect = pygame.draw.circle ( self.screen, ( 0, 0, 0 ), ( address [ 0 ] * 50 + 25, address [ 1 ] * 50 + 25 ), 20, 0 ) 43 self.refreshList.append ( refreshRect ) 44 for address in self.redCheckers: 45 refreshRect = pygame.draw.circle ( self.screen, ( 200, 0, 0 ), ( address [ 0 ] * 50 + 25, address [ 1 ] * 50 + 25 ), 20, 0 ) 46 self.refreshList.append ( refreshRect ) 47 48 def clearSpace ( self ): 49 for address in self.clearList: 50 refreshRect = pygame.draw.rect ( self.screen, self.board [ address [ 0 ] ] [ address [ 1 ] ], ( address [ 0 ] * 50, address [ 1 ] * 50, 50, 50 ), 0 ) 51 self.refreshList.append ( refreshRect ) 52 53 def update ( self ): 54 self.clearSpace() 55 self.drawCheckers() 56 pygame.display.update ( self.refreshList ) 57 self.refreshList = list() 58 59 pygame.display.init() 60 screen = pygame.display.set_mode ( ( 640, 480 ) ) 61 62 game = checkers ( screen ) 63 64 game.drawBoard() 65 game.redCheckers.append ( ( 3, 0 ) ) 66 game.blackCheckers.append ( ( 4, 2 ) ) 67 game.clearList.append ( ( 3, 0 ) ) 68 game.clearList.append ( ( 5, 0 ) ) 69 game.update() 70 71 raw_input() 72 pygame.quit()
When you call checkers.update(), it first clears all of the squares in clearList by redrawing the original board color, then it draws the checkers in each checker list. The draw functions return a rect if the screen was affected by the call. These are added to refreshList. After all the internal drawing functions have been called, checkers.update() passes refreshList to pygame.update(). Each rect in refreshList is updated on the screen. The checkers example is somewhat simplistic, but it shows the concept of tracking screen updates. In larger programs, you might have many drawing functions that need to update the screen. In this case, an update function can call things in the proper order and refresh the screen once at the end.
Graphing
The lineGraph.py program (Listing 5) has a graph class that draws a scale, grid, alignment marks, labels, and line graph, primarily using drawing functions discussed previously. It also initializes the font module to draw labels. A dataFile class reads the data to be plotted from a text file. Some values in the program are hard coded, but it could easily be converted into a full graphing module.
Listing 5
lineGraph.py
001 import pygame
002
003 class graph:
004 def __init__ ( self, screen ):
005 self.screen = screen
006 self.width = screen.get_width()
007 self.height = screen.get_height()
008 self.graphOriginY = int ( float ( self.height ) * .8 )
009 self.graphOriginX = ( self.height - self.graphOriginY )
010 self.labelColor = ( 0, 200, 0 )
011
012 pygame.font.init()
013 self.labelFont = pygame.font.SysFont ( "", 20 )
014
015
016 def drawAxes ( self ):
017 pygame.draw.line ( self.screen, self.labelColor, ( self.graphOriginX, self.graphOriginY ), ( self.graphOriginX, 0 ) )
018 pygame.draw.line ( self.screen, self.labelColor, ( self.graphOriginX, self.graphOriginY ), ( self.width, self.graphOriginY ) )
019
020 def drawHorizontalHash ( self ):
021 for i in range ( self.graphOriginX, self.width, 25 ):
022 pygame.draw.line ( self.screen, self.labelColor, ( i, self.graphOriginY - 5 ), ( i, self.graphOriginY + 5 ) )
023
024 def drawVerticalHash ( self ):
025 for i in range ( self.graphOriginY, 0, -25 ):
026 pygame.draw.line ( self.screen, self.labelColor, ( self.graphOriginX - 5, i ), ( self.graphOriginX + 5, i ) )
027
028 def drawGrid ( self ):
029 for x in range ( self.graphOriginX + 50, self.width, 50 ):
030 for y in range ( self.graphOriginY, 0, -50 ):
031 pygame.draw.line ( self.screen, self.labelColor, ( x, y ), ( x, y ) )
032
033 def drawScale ( self ):
034 for i in range ( self.graphOriginY, 0, -50 ):
035 value = float ( i ) / float ( self.graphOriginY ) * ( self.dataMax - self.dataMin ) + self.dataMin
036 labelSurf = self.labelFont.render ( "{:5.2f}".format ( value ), True, self.labelColor )
037 self.screen.blit ( labelSurf, ( self.graphOriginX - labelSurf.get_width() - 10, self.graphOriginY - i ) )
038
039 def graphLine ( self, data, labels, start, end ):
040 myData = list()
041 dataMin = None
042 dataMax = None
043 graphWidth = self.width - self.graphOriginX
044 dataWidth = int ( graphWidth / 25 )
045 for dataPoint in self.walkValues ( start, end, dataWidth ):
046 value = float ( data [ dataPoint ] )
047 if value < dataMin or dataMin == None: dataMin = value
048 if value > dataMax or dataMax == None: dataMax = value
049 myData.append ( value )
050 scale = float ( self.graphOriginY ) / ( dataMax - dataMin )
051 self.dataMin = dataMin
052 self.dataMax = dataMax
053
054 points = list()
055 for index, pointVal in enumerate ( myData ):
056 points.append ( ( index * 25 + self.graphOriginX, self.graphOriginY - int ( float ( pointVal - dataMin ) * scale ) ) )
057 labelSurf = self.labelFont.render ( labels [ index ], True, self.labelColor )
058 labelSurf = pygame.transform.rotate ( labelSurf, 45 )
059 self.screen.blit ( labelSurf, ( index * 25 + self.graphOriginX - labelSurf.get_width() + 5, self.graphOriginY + 5 ) )
060 pygame.draw.lines ( self.screen, ( 250, 0, 0 ), False, points )
061
062 def setupGraph ( self ):
063 self.drawAxes()
064 self.drawHorizontalHash()
065 self.drawVerticalHash()
066 self.drawGrid()
067
068 def walkValues ( self, start, end, size ):
069 listSize = end - start
070 sampleSpacing = int ( listSize / size )
071 for i in range ( start, end - sampleSpacing, sampleSpacing ):
072 yield i
073 yield end - 1
074
075
076
077 class dataFile:
078 columns = list()
079
080 def __init__ ( self ):
081 pass
082
083 def loadFile ( self, fileName, separator ):
084 dataFile = file ( fileName, "r" )
085 firstTime = True
086 for line in dataFile.readlines():
087 lineParts = line.split ( separator )
088 if firstTime == True:
089 for index, cell in enumerate ( lineParts ):
090 self.columns.append ( list() )
091 self.columns [ index ].append ( cell.strip ( "\r\n" ) )
092 firstTime = False
093 else:
094 for index, cell in enumerate ( lineParts ):
095 self.columns [ index ].append ( cell.strip ( "\r\n" ) )
096
097 def getColumn ( self, column, columnType = None ):
098 if columnType == None:
099 return self.columns [ column ]
100 elif columnType == "INT":
101 output = list()
102 for value in self.columns [ column ]:
103 output.append ( int ( value ) )
104 return output
105 elif columnType == "FLOAT":
106 output = list()
107 for value in self.columns [ column ]:
108 output.append ( float ( value ) )
109 return output
110
111 def printTable ( self ):
112 columnIndex = 0
113 for i in range ( 25 ):
114 text = ""
115 for column in self.columns:
116 text += column [ i ] + "\t"
117 print text
118
119 df = dataFile()
120 df.loadFile ( "tempdata.csv", "," )
121
122 pygame.display.init()
123 screen = pygame.display.set_mode ( ( 1024, 600 ) )
124
125 chart = graph ( screen )
126 chart.setupGraph()
127
128 labels = list()
129 dates = df.getColumn ( 1 )
130 times = df.getColumn ( 2 )
131 for i in range ( len ( dates ) ):
132 labels.append ( dates [ i ] + " " + times [ i ] )
133
134 chart.graphLine ( df.getColumn ( 3 ), labels, 0, 8000 )
135 chart.drawScale()
136 pygame.display.flip()
137
138 raw_input()
139 pygame.quit()
The __init__ () function in line 4 takes the screen variable as an argument and then does all of the drawing internally. The rest of the variables in init are either retrieved or calculated from the screen variable; init finishes by initializing the font module. pygame.font.SysFont ( "", 20 ) retrieves the default system font. The 20 requests that the font be rendered 20 pixels tall.
If you have a TTF font you want to use, you can load it with pygame.font.Font. Its arguments are the same as SysFont, except the first argument is the TTF file to load.
