Use your smartphone to control an airboat
Putting It All Together

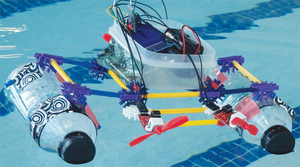

The three fans are wired to pins 6 and 7, 8 and 9, and 10 and 11. During construction, make sure the Arduino and battery pack are balanced in the container to keep everything – the fan blades, Arduino, and battery pack – out of the water (Figure 7).
The code in Listing 3 is the final program that controls the airboat. The first section sets up the Bluetooth module and describes the fans by specifying how they are pinned into the Arduino, defining them as outputs, and turning them all off. The main loop then accepts input from the smartphone and turns the fans on and off as commanded.
Listing 3
airboat.ino
01 // Airboat with 3 fans controlled by a bluetooth phone 02 03 int INA1 = 6; // back fan 04 int INB1 = 7; // back fan 05 int INA2 = 8; // right side fan 06 int INB2 = 9; // right side fan 07 int INA3 = 10; // left side fan 08 int INB3 = 11; // left side fan 09 10 char thekey; // input from Bluetooth phone 11 12 void setup() 13 { 14 // initialize the serial communication: 15 Serial.begin(9600); //baud rate of Bluetooth Module 16 // define the pins of the 3 fans as outputs 17 pinMode(INA1,OUTPUT); 18 pinMode(INB1,OUTPUT); 19 pinMode(INA2,OUTPUT); 20 pinMode(INB2,OUTPUT); 21 pinMode(INA3,OUTPUT); 22 pinMode(INB3,OUTPUT); 23 // start with all fans turned off 24 digitalWrite(INA1,LOW); 25 digitalWrite(INB1,LOW); 26 digitalWrite(INA2,LOW); 27 digitalWrite(INB2,LOW); 28 digitalWrite(INA3,LOW); 29 digitalWrite(INB3,LOW); 30 } 31 32 void loop() { 33 34 if (Serial.available() > 0) { 35 thekey = Serial.read(); // get the key from the phone 36 37 // "s" stops all fans 38 if (thekey == 's') { 39 Serial.println("Fans are stopped"); 40 digitalWrite(INB1,LOW); 41 digitalWrite(INB2,LOW); 42 digitalWrite(INB3,LOW); 43 delay(1500); 44 } 45 // "g" runs all fans 46 if (thekey == 'g') { 47 Serial.println("Fans are going"); 48 digitalWrite(INB1,HIGH); 49 digitalWrite(INB2,HIGH); 50 digitalWrite(INB3,HIGH); 51 } 52 // "l" only run right fan, turn left 53 if (thekey == 'l') { 54 Serial.println("Turn left"); 55 digitalWrite(INB1,LOW); 56 digitalWrite(INB2,HIGH); 57 digitalWrite(INB3,LOW); 58 } 59 // "r" only run left fan, turn right 60 if (thekey == 'r') { 61 Serial.println("Turn right"); 62 digitalWrite(INB1,LOW); 63 digitalWrite(INB2,LOW); 64 digitalWrite(INB3,HIGH); 65 } 66 } 67 }
Summary
With three fan modules, the airboat moves quite well (Figure 8), although two fans also work. Some possible future enhancements could be:
- trying to connect four or five fans,
- creating an Android app in App Inventor to control the airboat,
- adding a rudder with a servomotor controller, and
- creating a waterproof case for the Arduino and battery.
Good luck building your own smartphone-controlled airboat.
Infos
- Arduino Uno: http://store.arduino.cc/index.php?main_page=product_info&cPath=11&products_id=195
- Fan modules: http://www.suntekstore.com/goods.php?id=14009437&utm_source=gbus&utm_medium=paid
- Proto shield and mini-breadboard: http://www.dx.com/p/arduino-prototype-shield-with-mini-breadboard-65273#.VTkWnaYk8hY
- JY-MCU Bluetooth module: http://www.dx.com/p/jy-mcu-arduino-bluetooth-wireless-serial-port-module-104299#.VTkWxaYk8hY
- K'Nex building sets: http://www.knex.com/products/building-sets/
- Bluetooth Terminal: http://www.dx.com/p/keyes-l9110-fan-module-for-arduino-296111#.VT5ttmbr-Hl
