Using the Raspberry Pi as a smart alarm clock
The Web Page
The simple /var/www/alarm.php

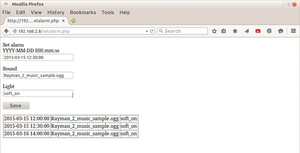

application is the heart of the software. This is what you will use to specify all of the settings for the wake-up alarm in the MySQL database (Figure 4). The preset versions offer only rudimentary functions for setting a wake-up alarm, leaving lots of room for further development (Listing 16).
Listing 16
More Functions
01 <HTML> 02 <form action="setalarm.php" method="post"> 03 <p>Alarm time<br>YYYY-MM-DD HH:mm:ss<br><input type="text" name="ts"/></p> 04 <p>Sound<br><input type="text" name="sound"/></p> 05 <p>Light<br><input type="text" name="light"/></p> 06 <p><input type="submit" name="save" value="store" /></p> 07 </form> 08 <?php 09 $con=new mysqli("localhost","alarm","alarm","alarm"); 10 if(isset($_POST['save'])) { 11 $ts=$_POST['ts']; 12 $sound=$_POST['sound']; 13 $light=$_POST['light']; 14 if(!$con){ die ("Database Connect failed"); } 15 $sql="insert into alarm (ts,sound,light) values('".$ts."','".$sound."','".$light."')"; 16 if($con->query($sql)===false){echo $con->error;} 17 } 18 $sql="select * from alarm order by ts asc"; 19 $result = $con->query($sql); 20 echo "<table border=1>"; 21 while($row = $result->fetch_assoc()) { 22 echo "<tr><td>".$row["ts"]."</td><td>".$row["sound"]."</td><td>".$row["light"]."</td></tr>"; 23 } 24 echo "</table>"; 25 $con->close(); 26 ?> 27 </HTML>
Potential Problems
If the Raspberry Pi is operating in a time zone different from the rest of the network, it will wake you up at the wrong time. This problem is easy to overlook. Also, you should make sure that as few programs as possible are running when the Rasp Pi activates the LED strip because timing is very important.
Because alarm.php
works with nohup
to terminate software components, programs that do not stop cleanly can get hung up in the process table. Therefore, if the Rasp Pi keeps getting slower, you should check whether that is indeed the problem with ps -ef
.
